Displaying Cubes¶

The Cubeviz layout includes three image viewers (at the top of the app) and one spectrum viewer (at the bottom of the app), which it attempts to populate automatically when the first dataset is loaded. By default, cubeviz attempts to parse and display the flux in the top left viewer, the uncertainty in the top middle viewer, and the mask into the top right viewer. The spectrum viewer is populated by default by collapsing the spatial axes using the max function. The indicators that the load machinery looks for in each HDU to populate the viewers are below (note that in all cases, header values are converted to lower case):

Flux viewer: hdu.name is in the set ['flux', 'sci']

Uncertainty viewer: hdu.header.keys() includes “errtype” or hdu.name is in the set ['ivar', 'err', 'var', 'uncert']

Mask viewer: hdu.data.dtype is np.int, np.uint or np.uint32, or hdu.name is in the set ['mask', 'dq']

If any viewer fails to populate automatically, or if displaying different data is desired, the user can manually select data for each viewer as described in the next section. Different statistics for collapsing the spectrum displayed in the spectrum viewer can be chosen as described in Display Settings. Note that any spatial subsets will also be collapsed into a spectrum using the same statistic and displayed in the spectrum viewer along with the spectrum resulting from collapsing all the data in each spectral slice.

Selecting Data Set¶

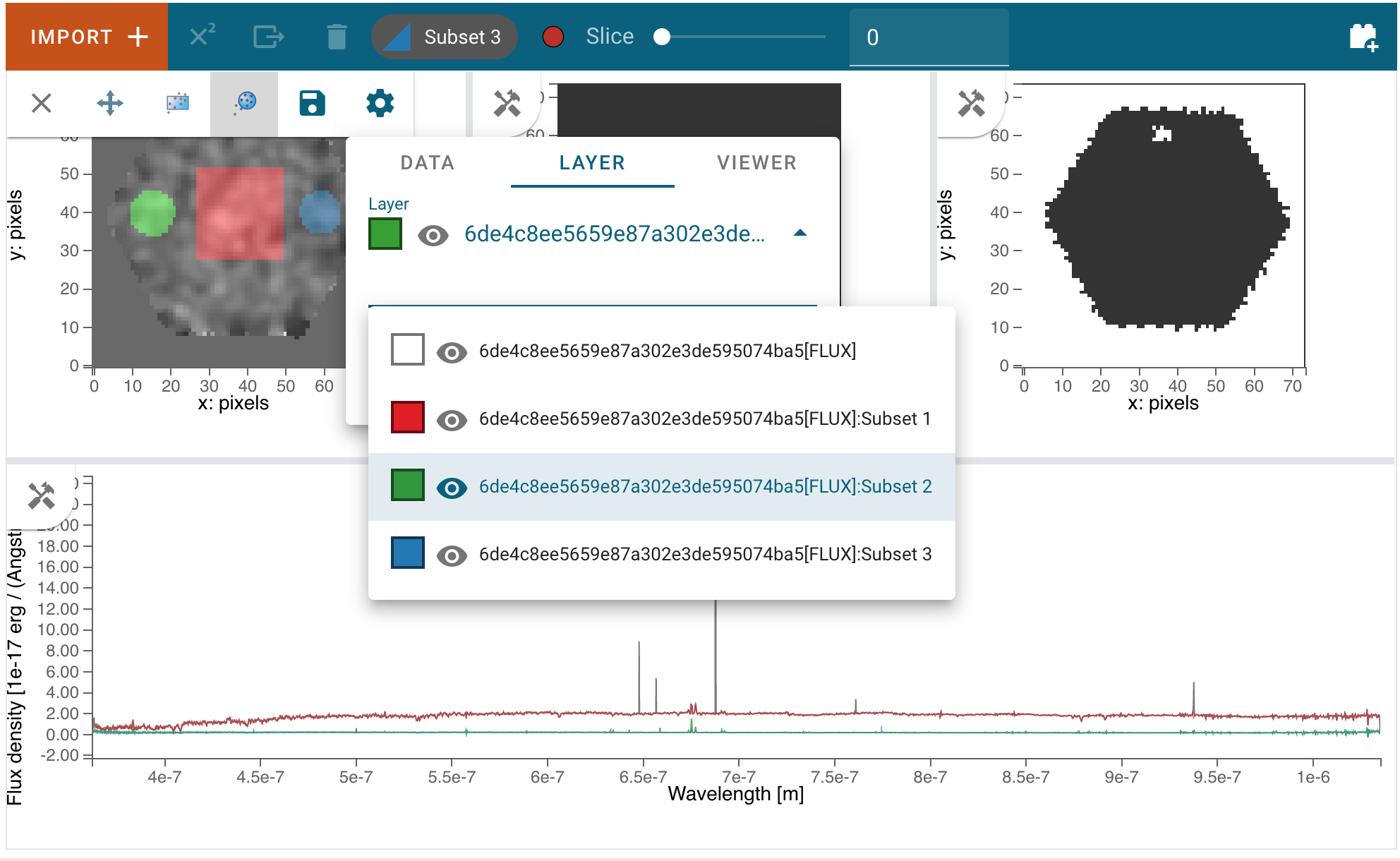

The data to be displayed in each viewer can be selected and de-selected by clicking on the hammer and screwdriver icon at the top left of each viewer. Then, click the gear icon to access the Data tab. Here, you can click the checkbox next to each listed dataset to make that dataset visible (checked) or invisible (unchecked).

Changing Wavelength Slice¶

To change the wavelength slice, click and drag the slider at the top of the Cubeviz User Interface (UI) to the left or right in order to get a lower or higher slice number, respectively. Another option is to click the circle that controls the location on the slider and use the left or right arrow keys on your keyboard to find a slice number with more precision. A third option is to type a slice number into the text box to the right of the slider and press enter on your keyboard. A fourth option is to use the up/down arrows inside the text box to raise/lower the slice number.

Defining Spatial Regions¶

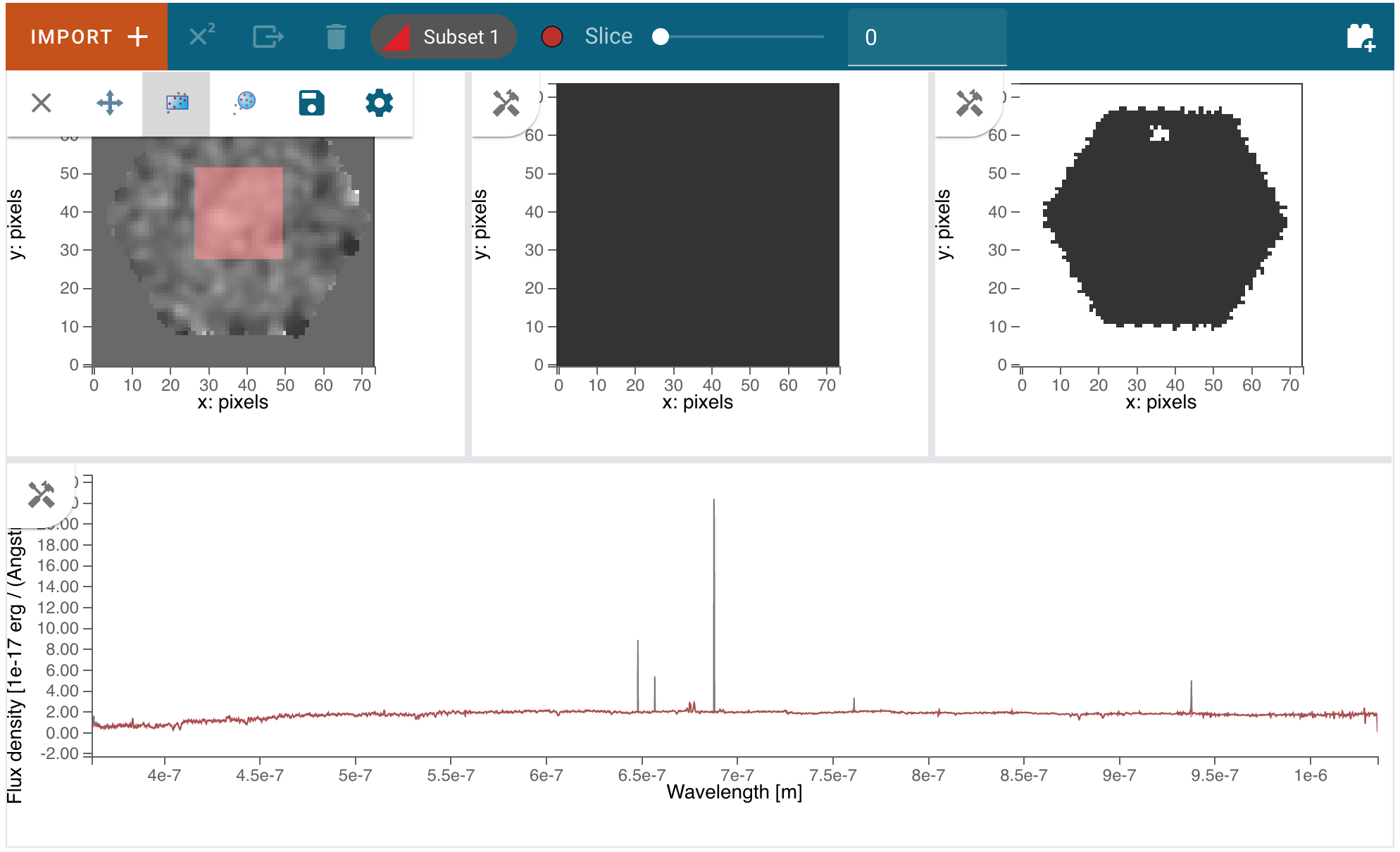

Regions can be created by first clicking the hammer and screwdriver icon and selecting either the rectangular region of interest icon or the circular region of interest icon, then clicking and dragging (using the mouse) until the desired region is covered by a colored shape, after which you release the mouse button. Once you have completed the action of clicking and dragging, there is an opportunity to reposition the region of interest by clicking on it and moving the region to a different location in the image viewer. If you are satisfied with the positioning of your region of interest, simply click another part of the viewer to lock it in place. Once a region is selected, the cube will be collapsed in wavelength space over the region, and the resulting spectrum will be displayed in the 1d spectrum viewer at the bottom of the UI.

There are other options available for region of interest. At the top of the User Interface, there is a section that says either “+ No selection (create new)” or “Subset n” where n is an integer that tells you which Subset is currently selected. To the right of this area, are red circles that allow you to change the method of region selection. The options are replace, add, and, xor, and remove. replace will remove the previously created selection and place the newly created subset. add allows you to create another subset that extends the existing subset. and only leaves behind the overlapping region between the existing subset and any additional subsets. xor only leaves behind the non-overlapping region between the existing subset and any additional subsets. remove will de-select any parts of the existing subset that overlaps with any additional subsets. You can use these options to further adjust the region of interest and adapt it to your use case.

Defining Spectral Regions¶

Spectral regions can be defined in the spectrum viewer in the same way they are defined in Specviz.

Pan/Zoom¶

Panning and zooming in the Cubeviz viewers works the same as described in the section on Panning and Zooming in Specviz, with the exception that image viewers have only the bidirectional Pan/Zoom tool enabled. The 1D spectrum viewer allows panning and zooming along a single axis as in Specviz.

Display Settings¶

Coming soon
